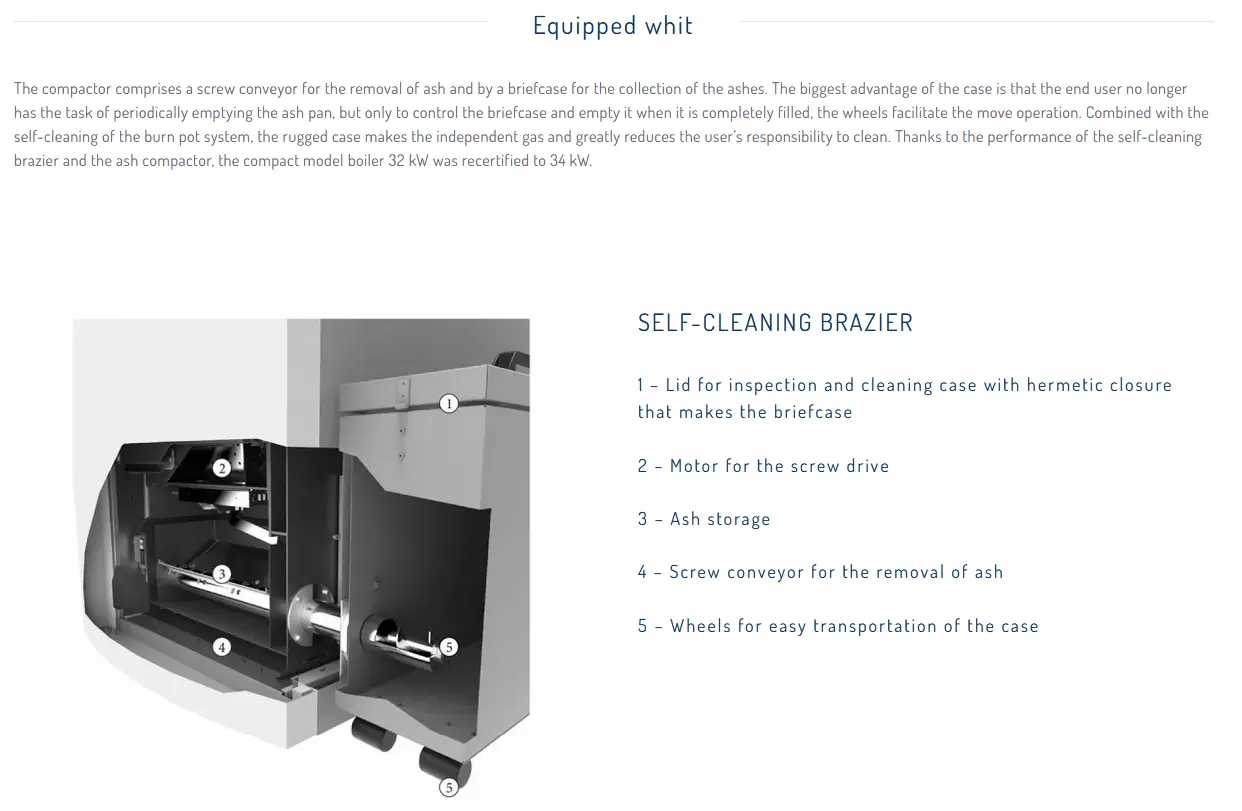

Compact 32 Self Cleaning Brazier and Ash Compactor

The compact pellet boiler can be easily placed in a technical room or in a service space due to its small size. Just like traditional boilers, the display is simple and intuitive for all phases of automatic operation. It has programmable electronics that can also be set remotely for daily switching on and off. Designed to give maximum efficiency and autonomy has a pellet tank up to 130 L with 59 working hours.

Technical Specification:

		Mod 16 A	Mod 20 A	Mod 24 A	Mod 28 A	Mod 32 A
Heatable Volume	m3	450	470	567	630	750
Heat input (max - min)	kW	15,9 - 4,4	19 - 5,86	23 - 6,8	27,1 - 7	33,2 - 7
Nominal heat output (max - min)	kW	14,5 - 4	17,51 - 5,21	21 - 6,3	25 - 6,34	31,2 - 6,34
Consumo horario di pellets (max - min)	Kg - H	3,27 - 0,91	3,87 - 1,19	4,72 - 1,38	5,55 - 1,43	6,78 - 1,43
Efficiency (max - min)	%	91,1 - 90	92,13 - 88,82	92,1 - 91,1	92,2 - 90,65	94 - 90,65
Smoke outlet tube	ø mm	80	80	80	100	100
Tank capacity	Lt - Kg	70 - 46	100 - 60	100 - 60	130 - 81	125 - 81
Autonomy (max - min)	H	50 - 14	50 - 15	42 - 12	56,5 - 14,5	56 - 8,5
Nominal power input	W	140 - 350	140 - 350	140 - 350	85 - 330	140 - 350
Dimensions (W x D x H)	MM	560 x 680 x 1080	630 x 770 x 1250	630 x 770 x 1250	690 x 860 x 1370	690 x 860 x 1370
Net weight	Kg	180	250	250	305	305
